Quantitative Analysis of Complex Nanocomposites Based on Straight Skeletonization

Pablo G Tahoces1, Paula V Messina2, Juan M Ruso3


Abstract

Bones are complex nanocomposites composed mainly by hydroxyapatite nanocrystals. Different factors characterize its morphology: composition, length, orientation, roughness. To increase our understanding of the tissue morphology at this fundamental lever of organization, a new method based on the straight skelonization of the images obtained by electronic microscopy is proposed. The method detects and measures the length and angularity of any straight edge of over the image. The technique resolved several test patterns independent of size and angle of rotation. Several samples obtained from different substrates were analyzed with the method. The results were consistent with those values obtained from conventional methods. Although still limited as a laboratory application, shape analysis has the potential to provide insight into the mechanisms of crystal growing and may provide a basis for specifications or guidelines for the manufacturing of biomaterial for bone tissue engineering.


Software and DataSet

Software

An implementation of the proposed technique (for Microsoft Windows platform) is avalaible by clicking Line Detector

To run the program, just download it, unzip the file and start by double clicking LineDetector1_4.0_64. Then, select an image by browsing the filesystem. A emerging window will appear, were the user can configure the parameters for the execution of the software (See figure 1).

parameterWindow

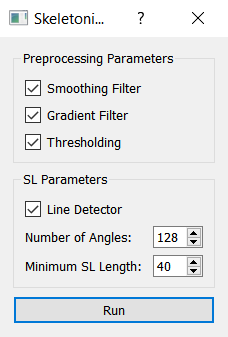

Fig 1. Parameter Configuration Window

Parameters of the Program

Preprocessing

Select one of the following actions: smoothing (remove noise), enhancing (enhance structures), thresholding (binarize)

For phantom images deselect those actions. For composite images, select all of them.

Straight Line (SL) Parameters

For Straight Line extraction, select Line Detector.

You can tunned the detection process by modifying the following parameters:

Dataset and Experiments

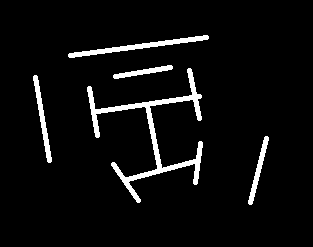

Phantom

phantomSmall
Original
phantomCTSmall
Computer Traced
Parameters:

Spongy nanostructured SiO2

M5-30-06_SSmall
Original
M5-30-06_SSmall

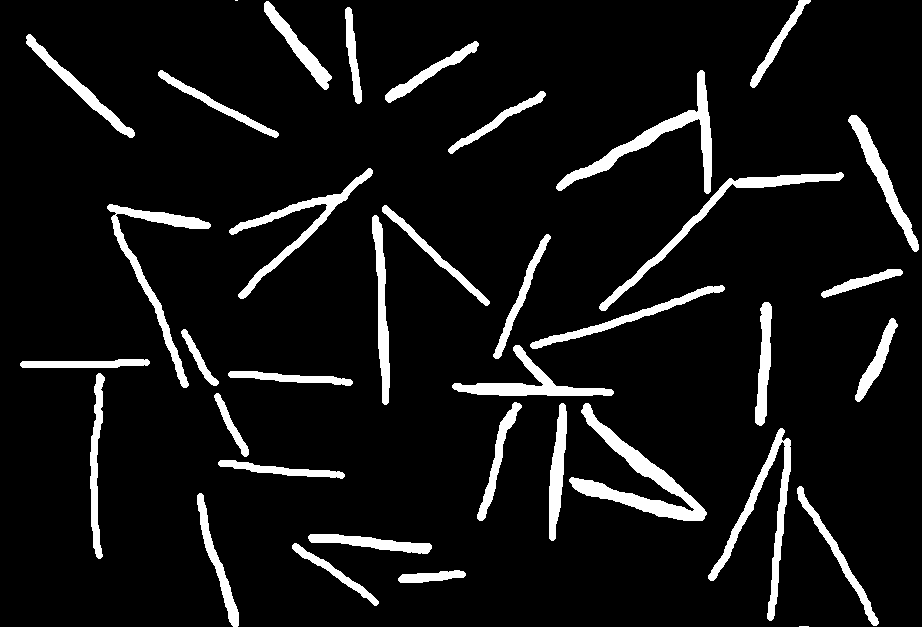

Manual Traced
M5-30-06_SSmall

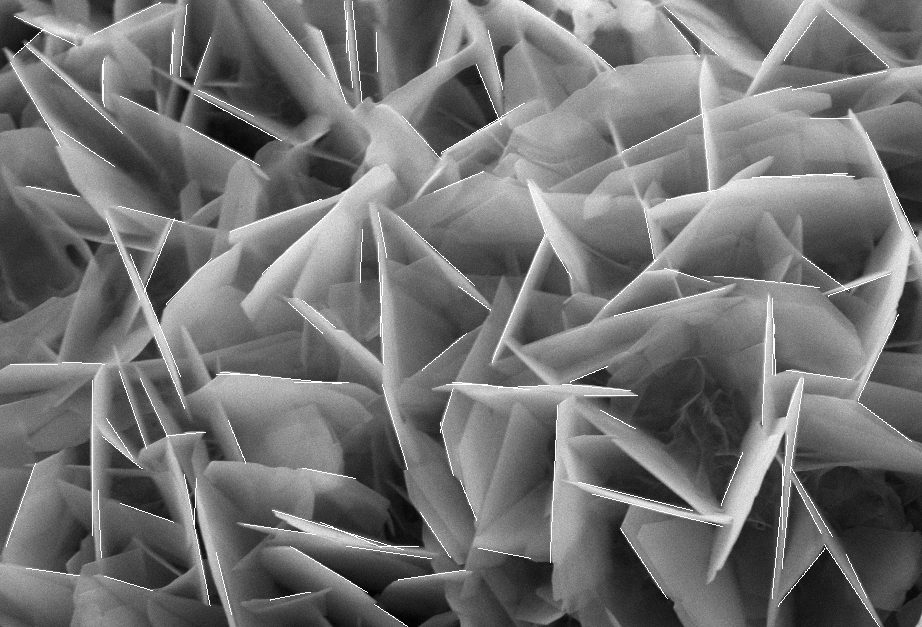

Computer Traced
Parameters:

Striped Ce-TiO2

M5-30-06_SSmall
Original
M5-30-06_SSmall

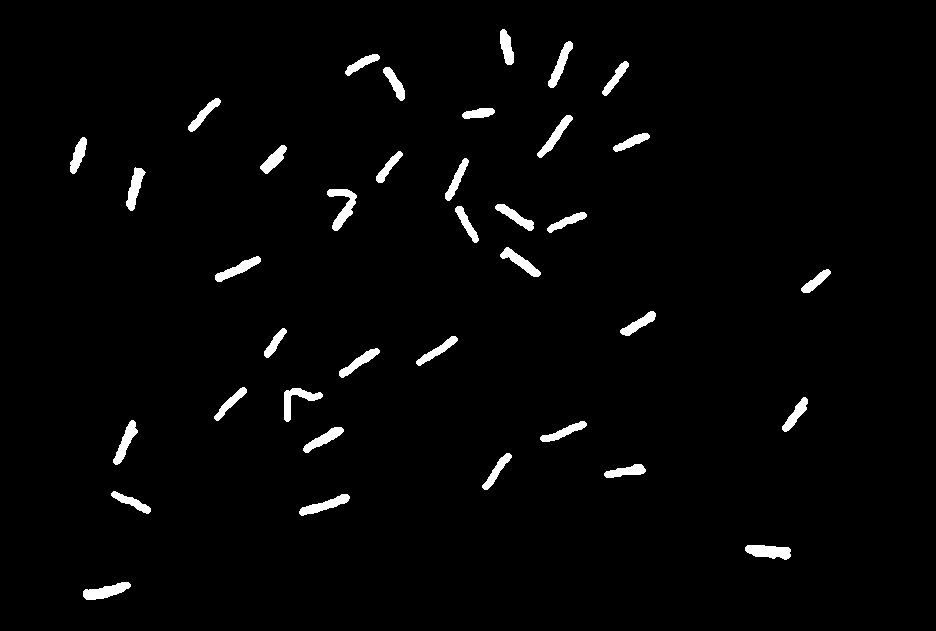

Manual Traced
M5-30-06_SSmall

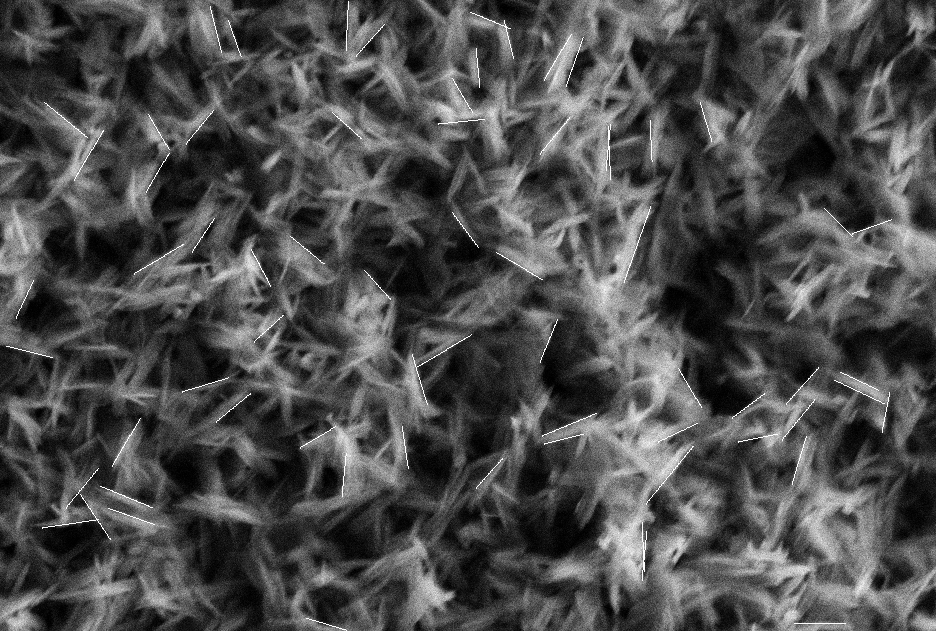

Computer Traced
Parameters:
